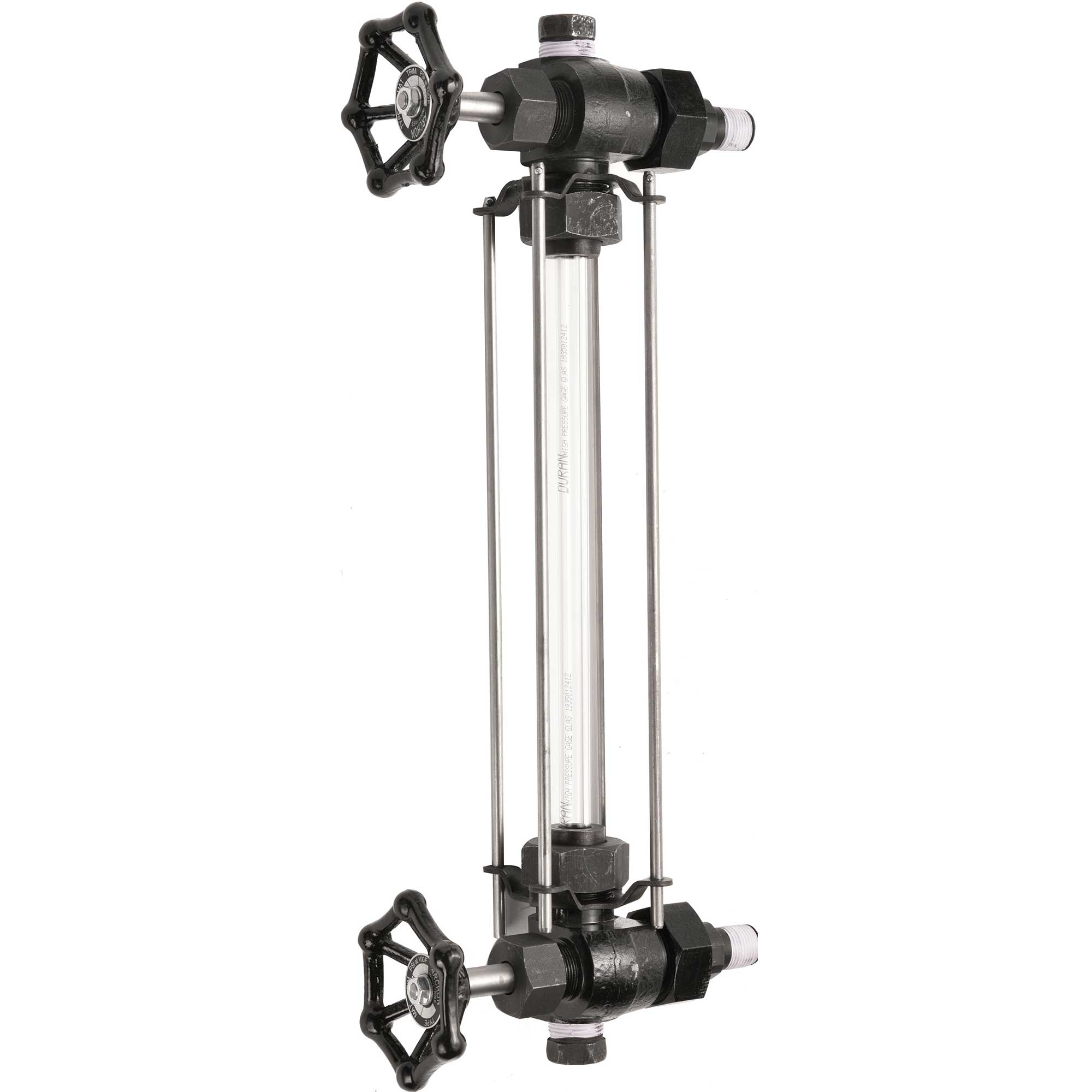

Model TV55 Tubular ValvesTV55 tubular valves are constructed from cast steel bodies, stainless steel trim, safety ball checks that automatically shut off flow if the glass breaks, and four guard rods providing added safety. Ball checks can be removed upon request for use with steam applications. Various connection types are available that are adaptable to most piping requirements.

The drain and vent connections are in direct line with the TV55 liquid chamber and center line of the vessel connections. The TV55 unit also offers quick cleaning of inside the glass through the vent and drain connections without removing the gauge from service.

Standard features include:

  • Ball Checks in Top and Bottom Valves
  • Graphite Stem Packing
  • Zinc Handwheel
  • 4 Stainless Steel Guard Rods (3/16″ Ø)
  • 5/8″ Glass with 1/2″ NPT
  • 3/4″ Glass with 3/4″ NPT

Glass options include:

  • High Pressure
  • Red Line Glass
  • Heavy Wall

Pressure Rating: Up To 500 PSIG
Steam Applications: Up To 50 PSIG

Temperature Rating:

  • 350°F with Viton O-Ring
  • 200°F with EPDM / BUNA O-Ring
  • 400°F with FEP SILICONE O-Ring
